New High Strength Magnesium Sheet has Formability Comparable to Aluminum

magnesium sheet test

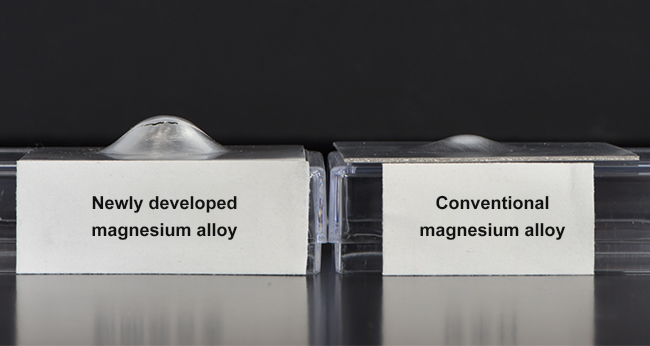

Comparison of newly developed and conventional magnesium alloy sheets after they were subjected to Erichsen tests. (Source: NIMS.)

The National Institute for Materials Science (NIMS) and Nagaoka University of Technology (NUT) have developed high strength magnesium sheet with excellent room-temperature formability comparable to that of aluminum sheet currently in use in the body panels of some automobiles. The new alloy is said to become stronger than the aluminum alloy after a heat treatment required for paint baking and is expected to be a low-cost, lightweight sheet metal for automotive applications.

Magnesium alloys are roughly 75% lighter than steels and 33% lighter than aluminum alloys and their usage as structural materials in automotive bodies is expected to be effective in weight reduction for better fuel efficiency. However, virtually no magnesium alloys are used in automotive bodies because of their high processing cost originating from the poor formability and low strength of magnesium sheet metals.

Led by Taisuke Sasaki, senior researcher at NIMS, and Prof. Shigeharu Kamado at NUT, a research team recently developed a new age-hardenable magnesium alloy, Mg-1.1Al-0.3Ca-0.2Mn-0.3Zn (numbers indicate constituent elements by atomic percentage), named AXMZ1000. The newly developed alloy has excellent room temperature formability comparable to that of medium strength aluminum alloys that are used in some automobile bodies. In addition, the new alloy is 1.5–2.0 times stronger than the aluminum alloy. The excellent formability was achieved by adding very small amounts of zinc (Zn) and manganese (Mn), which led to the formation of fine grain structures, and the high strength was accomplished by adding aluminum (Al) and calcium (Ca), which induced the strengthening of the alloy by the formation of atomic clusters.

The newly developed alloy is composed of only common metals, so the material cost is not expensive. Also, it can be rolled into sheets using simple processes and heat treatments commonly used for aluminum alloys. The newly developed alloy overcomes the long-standing issues for magnesium alloys — namely, low strength and poor room temperature formability. As the processing cost of the new material is expected to be low, there is good potential for practical applications in automotive bodies or casing of notebook computers and cell phones for their weight reduction.

This study was conducted as a part of the JST Advanced Low Carbon Technology Research and Development Program (ALCA).
